10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer

Name: 10000kVA 10KV Composite Oil Type Distribution Rectifier Transformer
Brand: Tianan Electric
Price: 1 USD

Quality 10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer for sale

Brand Name : Tianan Electric

Model Number : SFZ, SF, type

Certification : CQC

Place of Origin : CHINA

MOQ : 1 uint

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 units/year

Delivery Time : 45 work days

Packaging Details : as Standard

Price : Pending

Phase : 3 phase

Core : Core-type Transformer

Shape of Core : Ring

Application : Power

Contact Now

10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer

Overview:

11kV Oil immersed Self cooled Rectifier Transformer has the advantages of low loss, low noise and high efficiency and can achieve good energy-saving effect and reduce pollution. Compared with common oil-immersed transformer, it is unnecessary for full-sealed transformer to be equipped with oil conservator and change in oil volume is automatically adjusted and compensated by elasticity of corrugated sheet of corrugated tank, and transformer is isolated from air to prevent and slow down oil degrading and insulation aging, enhance operational reliability, with normal operation and no maintenace.

Rated capacity (KVA)	Connection symbol	High voltage (KV)	Tapping range	Low voltage (KV)	No-load loss(W)	Load loss(W)	No-load current (%)	Short circuit impedance (%)
30	Yyn0 or Dyn11	6 6.3 10 10.5 11	±5% or ±2*2.5%	0.4	100	630/600	2.3	4.0
50					130	910/870	2.0
63					150	1090/1040	1.9
80					180	1310/1250	1.9
100					200	1580/1500	1.8
125					240	1890/1800	1.7
160					280	2310/2200	1.6
200					340	2730/2600	1.5
250					400	3200/3050	1.4
315					480	3830/3650	1.4
400					570	4520/4300	1.3
500					680	5410/5100	1.2
630					810	6200	1.1	4.5
800					980	7500	1.0
1000					1150	10300	1.0
1250					1360	12800	0.9
1600					1640	14500	0.8
2000					2280	17820	0.6	5.0
2500					2700	20700	0.6	5.0

For detailed technical specifications, please contact us.

10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer

Product Tags:

oil type transformer

power transmission transformer

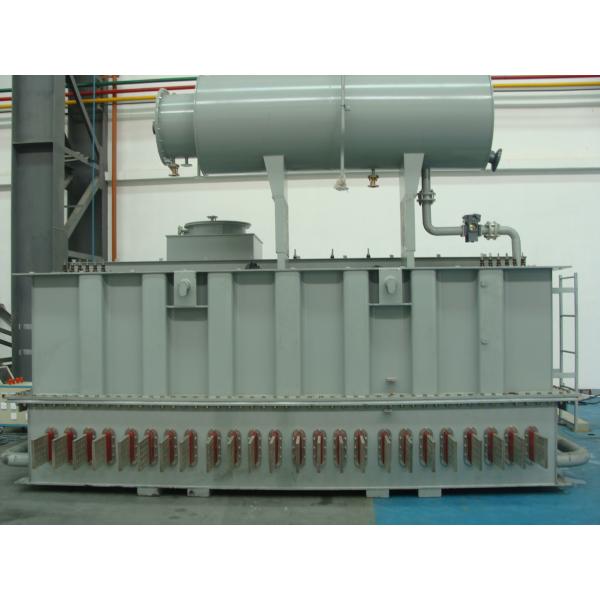

10000kVA / 10KV Composite Oil Type Distribution Rectifier Transformer Images
